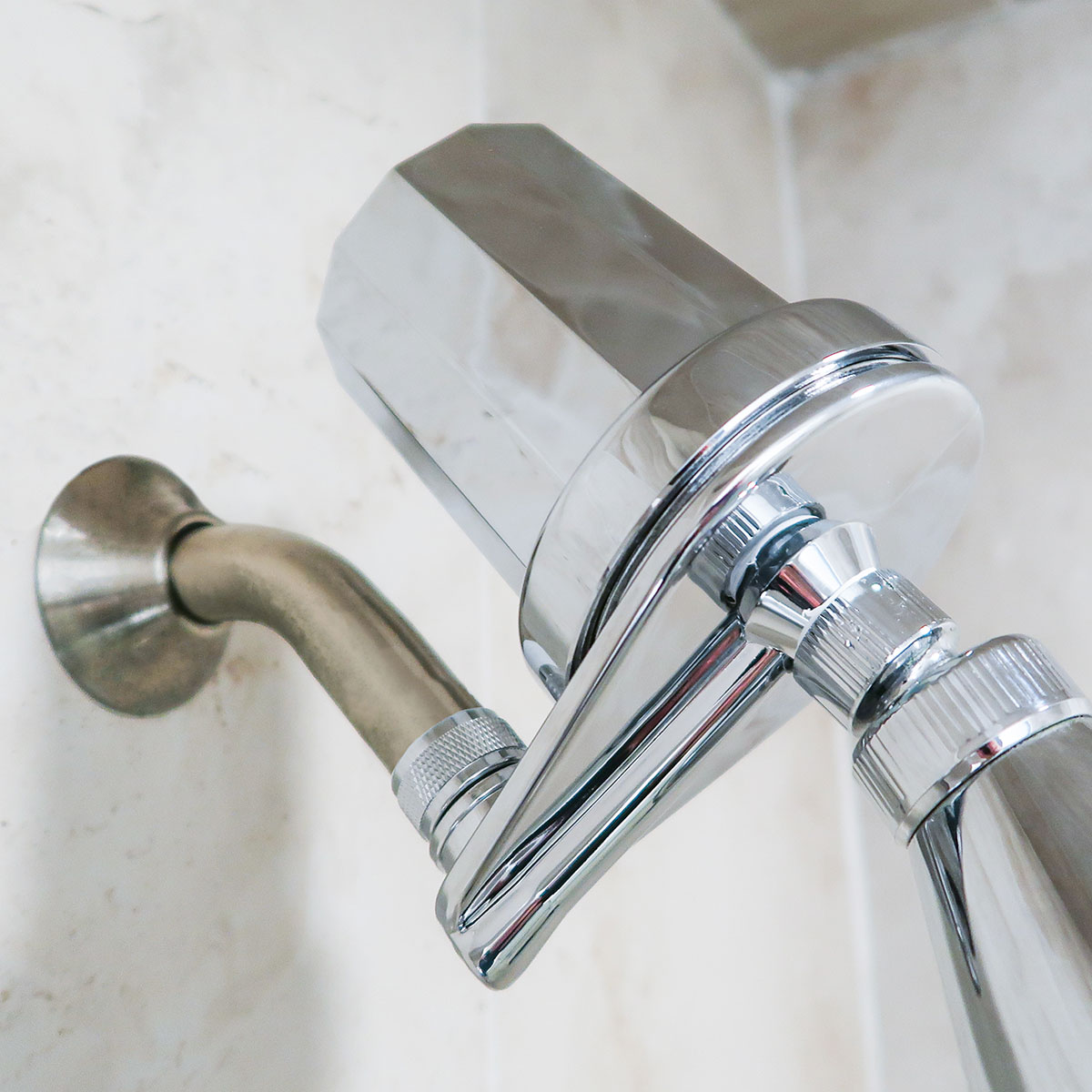

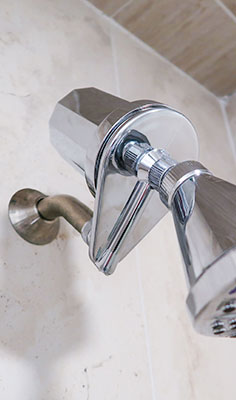

Berkey^® Inline Shower Filter With Berkey^® Easy-Replace Cartridge – Chrome

Promote healthy skin and hair. Feel refreshed. Reduce up to 98% of harsh chlorine, which can damage delicate skin and hair. Berkey^® Easy-Replace Shower Filter Cartridges inhibit bacterial growth, and reduce heavy metals, algae, scale, and sediment in your water, improving water and vapor quality.

Keep the shower head you enjoy. Replace cartridge annually with less hassle. The Berkey^® Inline Shower Filter fits standard ½” plumbing fixtures. Connect it between the shower arm and most shower heads (not included). Berkey^® Easy-Replace Shower Filter Cartridges can be swapped out by hand in mere moments, and last up to 30,000 gallons or approximately 1 year with typical use.

Specifications:

• SKU: W01BERKEY
• Chrome finish
• BPA free
• Universal ½” fittings
• Rated service flow:
  2.5 gallons (9.5 liters) per minute
• Lifespan:
  up to 30,000 gallons (113,400 liters) / 1 year
• Overall dimensions:
  H: 5.1″ (128.25mm) x W: 3.5″ (86.75mm) x D: 5.1″ (129mm)
• Housing cover:
  H: 3.9″ (98mm) x diameter: 3.6″ (89.50mm)
• Operating pressure:
  20 – 100 psi (1.4 – 6.9 bar)
• Operating temperature range:
  40° – 120° F (4° – 48.9° C)
  • Optimal pH range: 6.5 – 8.5

Precautions:

• Lifespan of shower filter cartridge is dependent
  on the quality of influent water
• Water filtered by shower filter cartridge is not
  advised for drinking water purposes
• Installation of shower filter must comply with
  state and local plumbing codes
• A shut-off valve is not advised to be used with the
  shower filter
• Do not use when line pressure exceeds 100 psi (6.9 bar)
• Do not exceed 120° F (48.9° C)
• Do not install in direct sunlight
• Protect from freezing

 Included in the box:

●      Filter cartridge
●      Cartridge housing
●      Plumbing plate
●      Rubber washer
●      Plumber’s tape
●      Instructions

IMPORTANT! Flush Cartridge Before First Use

To prevent stains, flush the cartridge to clear excess carbon. After installing, point shower head
toward non-porous shower wall. Turn on water. Run until water runs clear (about 3-5 minutes).

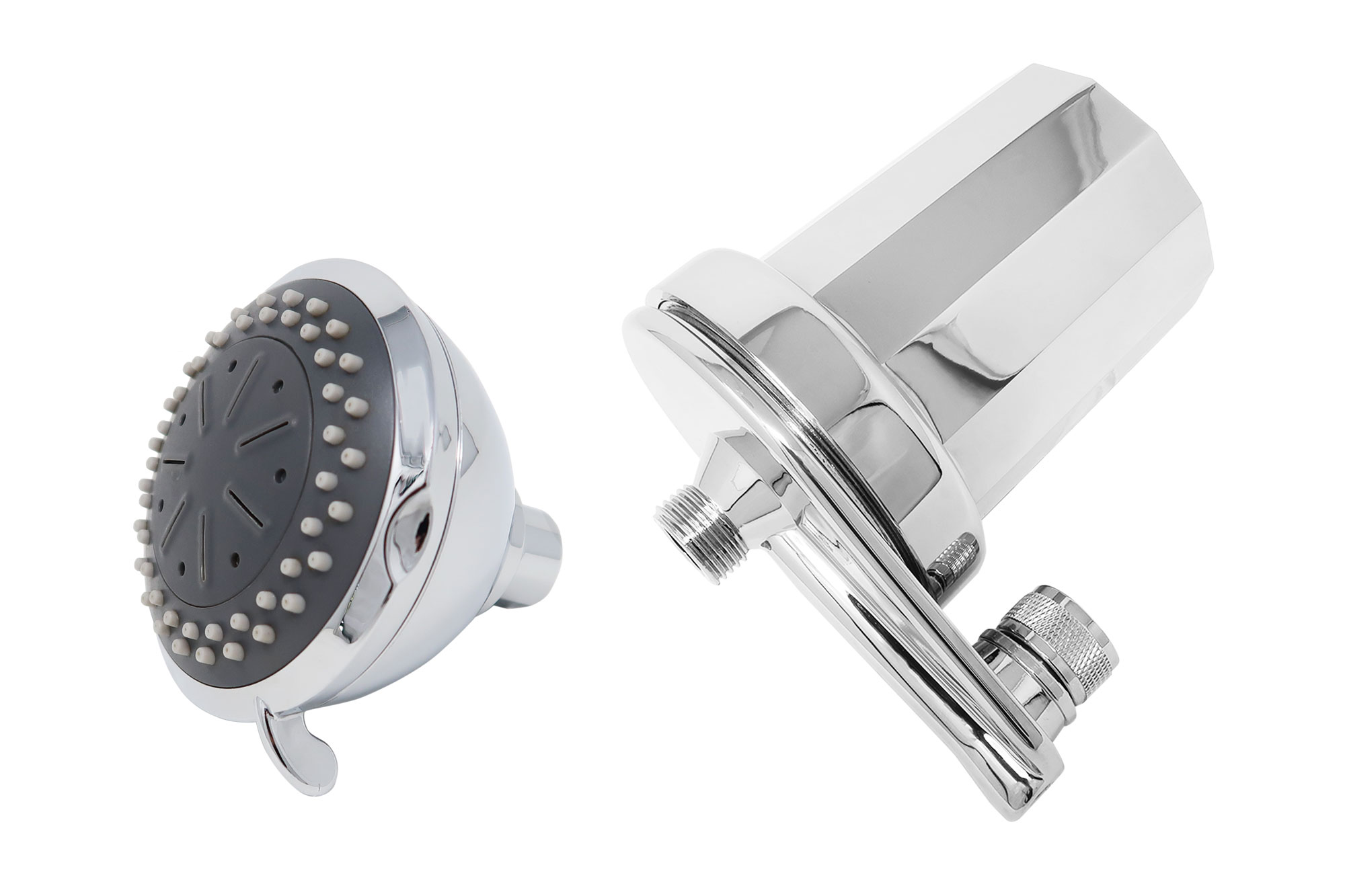

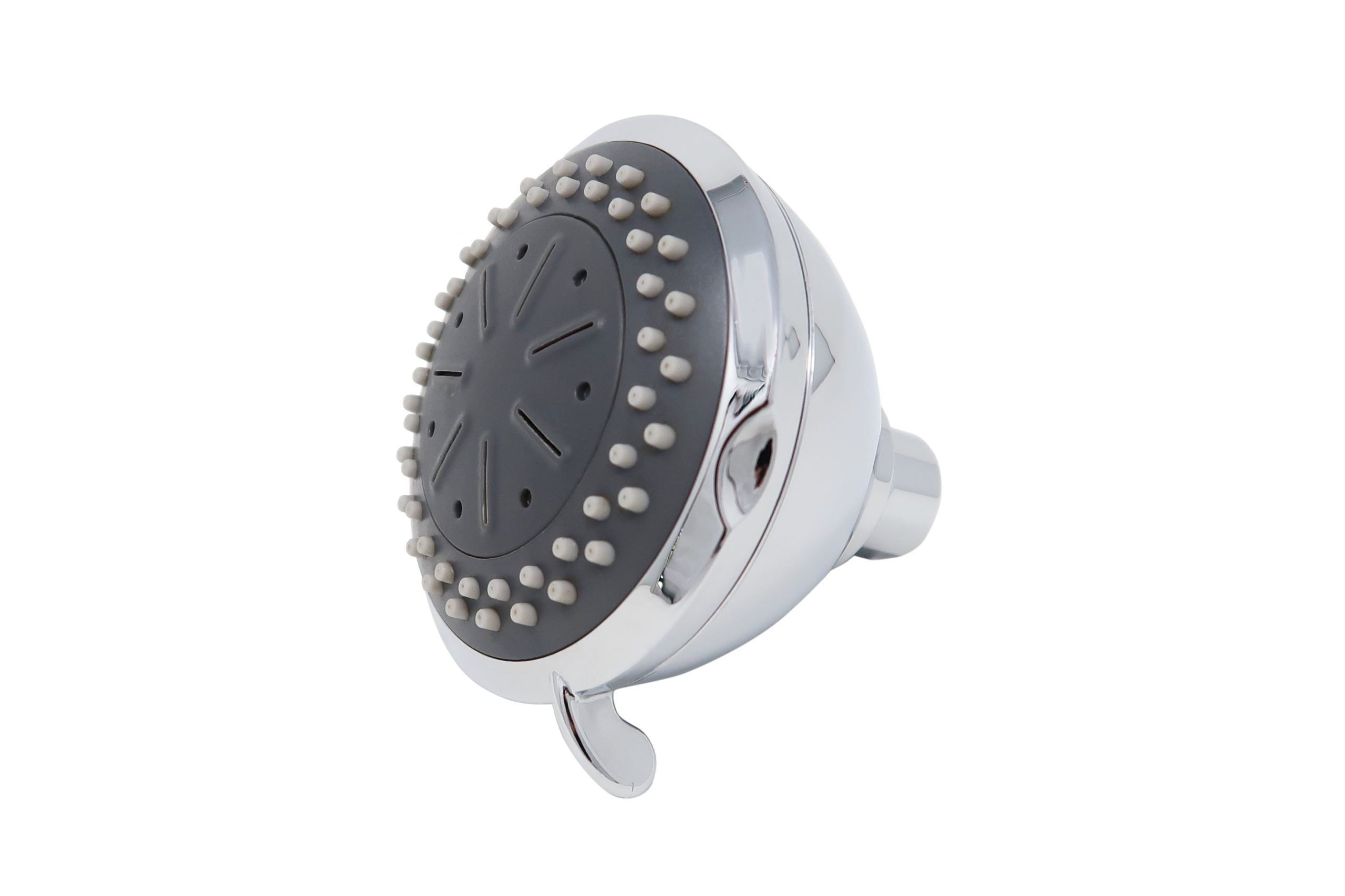

Berkey® 3-Spray Shower Head

Usage and Cleaning

Turn shower head face in either direction to change spray pattern. To clean, periodically wipe shower head with warm water and mild soap. Rinse well and pat with soft cloth to dry. Never use harsh abrasive cleaners, as they may damage the shower head’s chrome finish.

Precautions

• Installation of shower head
  must comply with state and local
  plumbing codes
• Do not use when line pressure
  exceeds 80 psi (5.5 bar) or water
  temperature exceeds 104° F (40° C)
• To improve seal, wrap plumber’s
  tape (not included) clockwise several
  times around shower arm threads
  before connecting shower head

Specifications

• 3 spray settings
• Rated service flow:
  2.5 gallons (9.5 liters) per minute
• Dimensions: diameter: 3.5″
  (89mm) x D: 2.9″ (72.75mm)
• Operating pressure:
  20-80 psi (1.4-5.5 bar)
• Operating temperature range:
  40°-104° F (4°-40° C)
• Canadian Uniform Plumbing
  Code certified

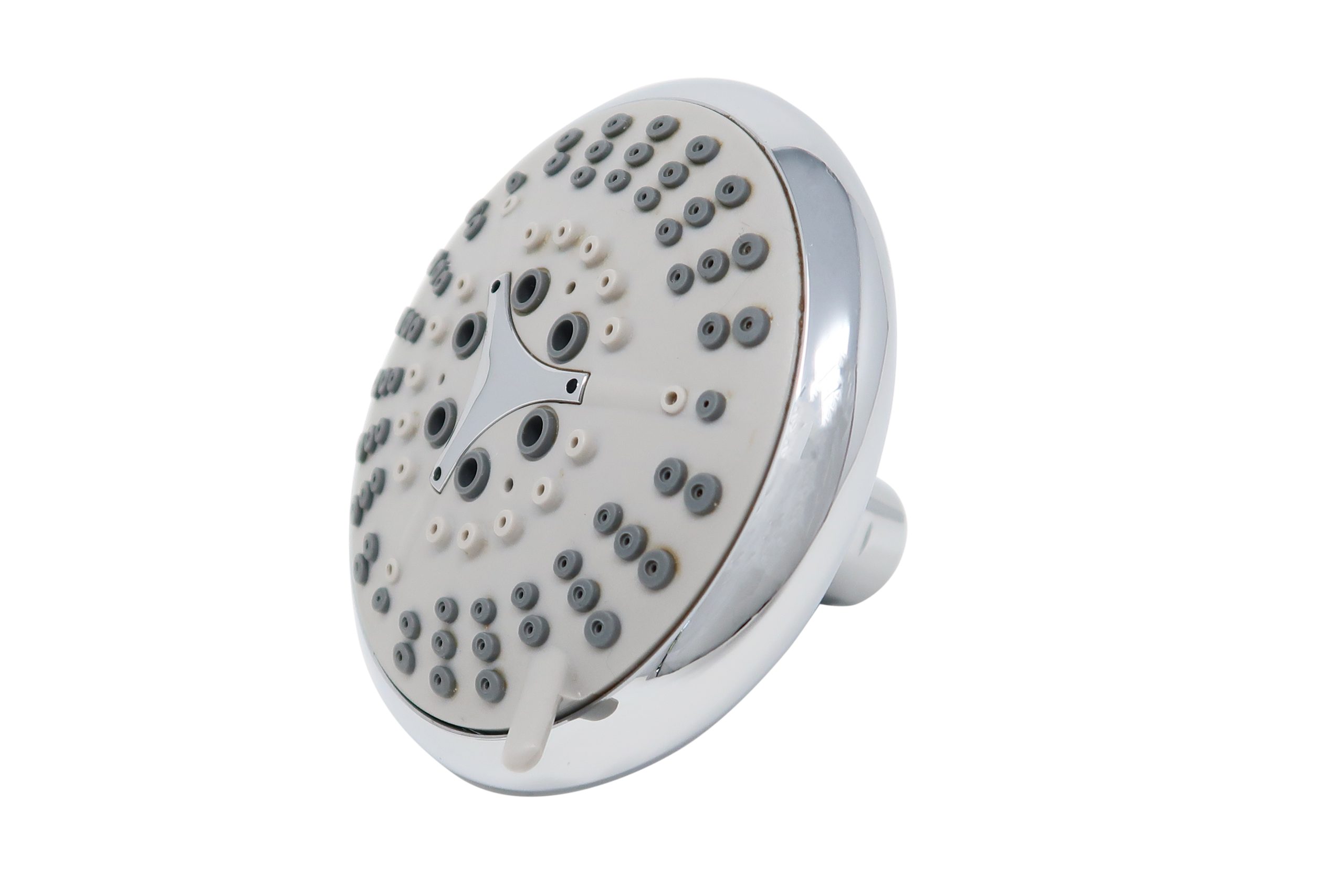

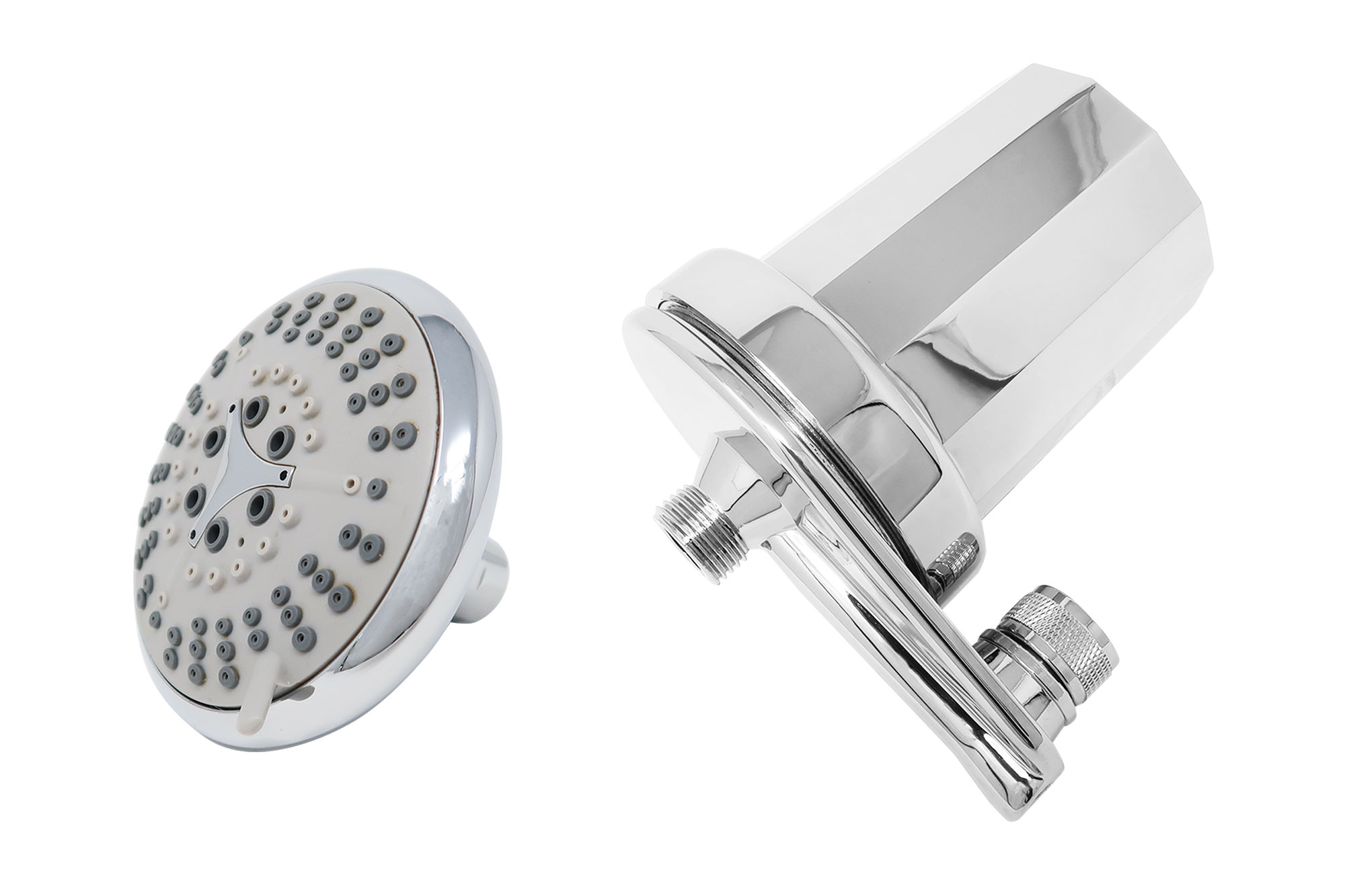

Berkey® 6-Spray Shower Head

Usage and Cleaning

Turn shower head face in either direction to change spray pattern. To clean, periodically wipe shower head with warm water and mild soap. Rinse well and pat with soft cloth to dry. Never use harsh abrasive cleaners, as they may damage the shower head’s chrome finish.

Precautions

• Installation of shower head
  must comply with state and local
  plumbing codes
• Do not use when line pressure
  exceeds 80 psi (5.5 bar) or water
  temperature exceeds 104° F (40° C)
• To improve seal, wrap plumber’s
  tape (not included) clockwise several
  times around shower arm threads
  before connecting shower head

Specifications

• 6 spray settings
• Rated service flow:
  2 gallons (7.6L) per minute
• Dimensions: diameter: 4.1″
  (105mm) x D: 2.8″ (70mm)
• Operating pressure:
  20-80 psi (1.4-5.5 bar)
• Operating temperature range:
  40°-104° F (4°-40° C)

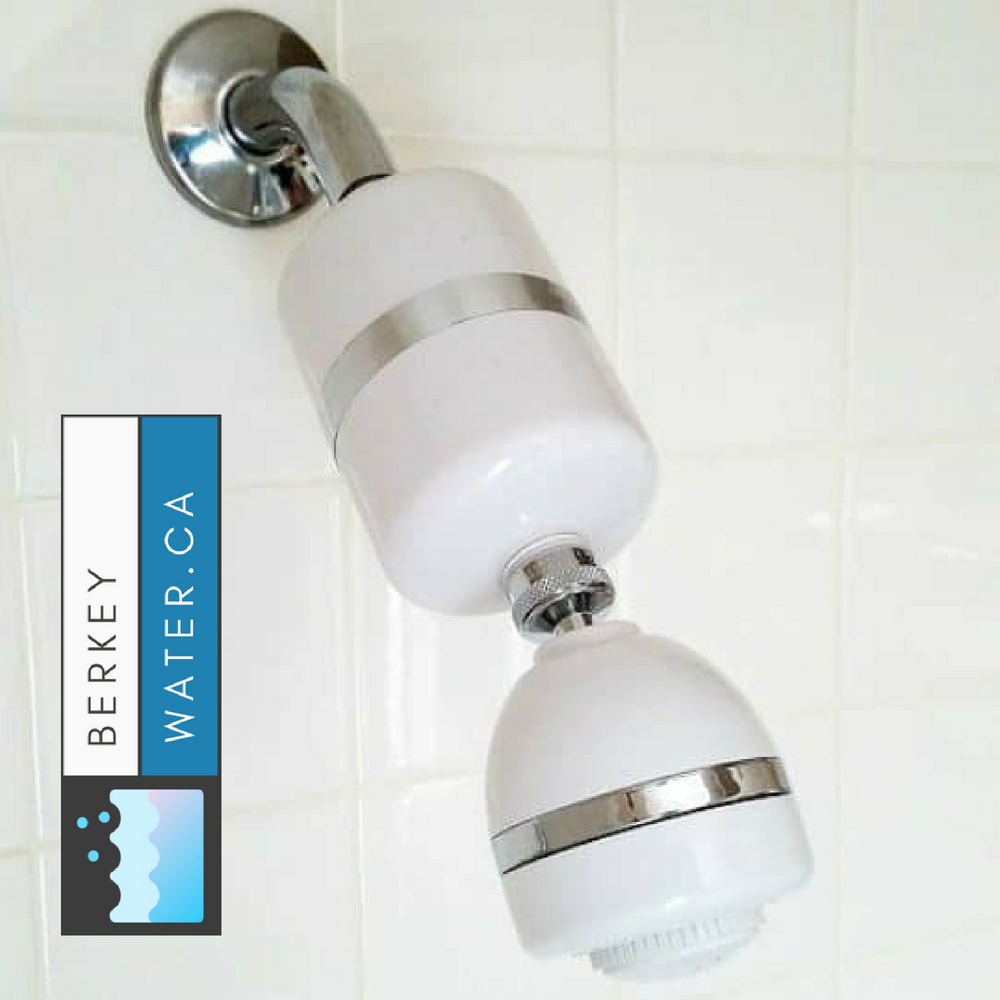

Berkey Shower Filter

Berkey Shower Filter™ W/Massage Head

*The Berkey Shower Filters™ are assembled in the USA from US and imported parts

• The Berkey Shower Filter™ is designed for those who want the benefits of showering in filtered water
• May be used with your existing shower head. Also available with massage shower head already installed
• Designed to last for 20,000 gallons or one year, whichever comes first
• “Full flow” filter insures even distribution of water throughout the media
• Easy installation of replaceable cartridge with self-sealing threads
• Back Flush Attachment to prevent premature clogging
• Reduces chemical absorption and vapor inhalation
• Effective for both hot and cold water
• Reduces damage to hair and skin
• Eliminates dirt and odors
• Reduces free chlorine, hydrogen sulfide, scale, and iron oxide (rust water)
• BPA free
• Do not use with shut-off valve

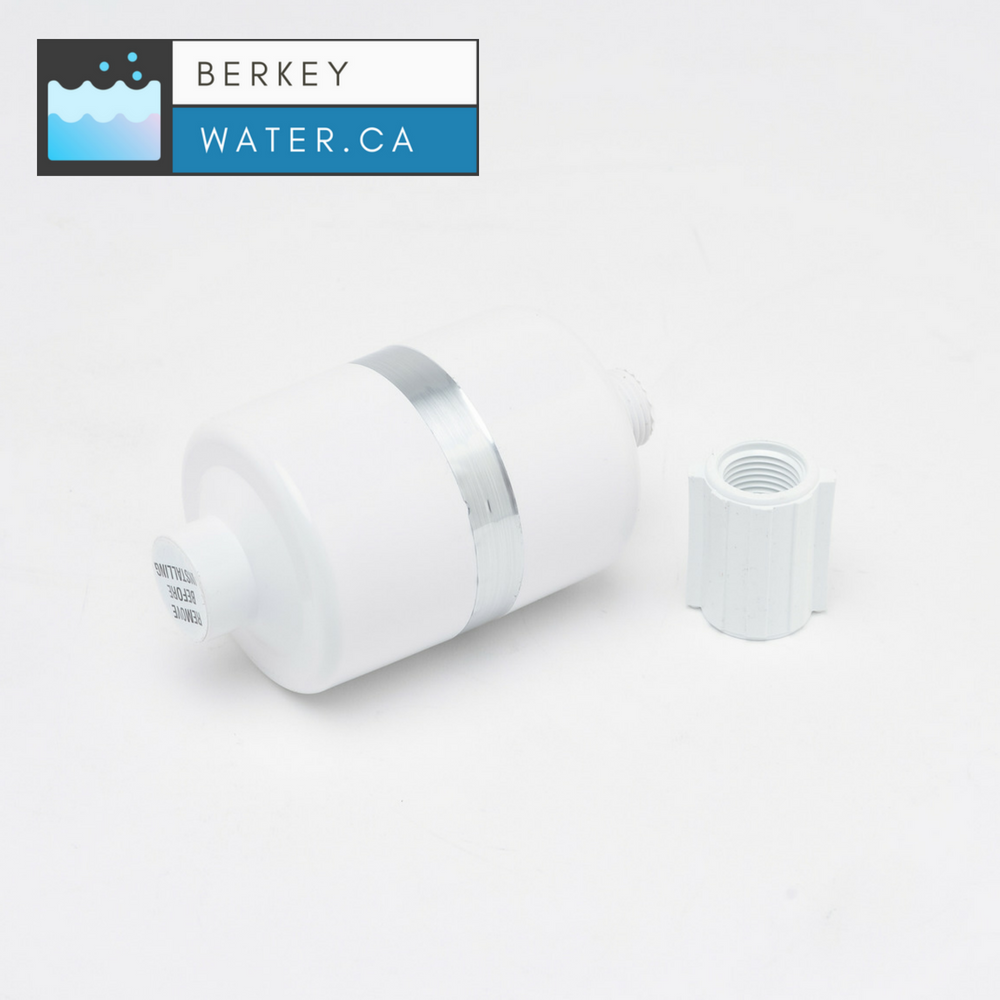

Berkey Shower Filter™ W/Out Head

The Berkey Shower Filters™ are assembled in the USA from US and imported parts

• The Berkey Shower Filter™ is designed for those who want the benefits of showering in filtered water
• May be used with your existing shower head. Also available with massage shower head already installed
• Designed to last for 20,000 gallons or one year, whichever comes first
• “Full flow” filter insures even distribution of water throughout the media
• Easy installation of replaceable cartridge with self-sealing threads
• Back Flush Attachment to prevent premature clogging
• Reduces chemical absorption and vapor inhalation
• Effective for both hot and cold water
• Reduces damage to hair and skin
• Eliminates dirt and odors
• Reduces free chlorine, hydrogen sulfide, scale, and iron oxide (rust water)
• BPA free
• Do not use with shut-off valve

In the shower environment, chlorine can either be in liquid or gas state. At higher water temperatures in the enclosed shower stall, free-chlorine moves from the liquid to the gas state, where it vaporizes and subsequently is inhaled. The United States regulates each water filter for shower use, and all shower filters must flow at 2.5 gallons of water per minute. Thus, the science behind shower head water filtering must take into account the unique situation in the shower, including temperature, flow rate and volume. Berkey understands this process and took all of these factors into account while developing our unique shower water filters.

The Berkey Shower Filter works on a similar principle to a catalytic converter in an automobile. Inside the shower filter, free chlorine is converted into a harmless chloride. The scientific name for this chemical reaction taking place inside the Berkey shower filter is known as “Reduction-Oxidation,” commonly referred to as Redox. Redox reactions can be chemically complex. Simply stated, during a Redox reaction electrons are transferred between molecules, creating new elements. For instance, when free chlorine comes in contact with the Berkey filtration media, it is changed into a benign, water-soluble chloride. This reaction changes free-chlorine to a larger chloride element, too large to evaporate or be absorbed by the skin. Hospitals, restaurants, municipal water treatment facilities, and homes rely on this same process media to safely reduce or remove free chlorine, hydrogen sulfide and bacteria from their water.

Proprietary filter media granules are high-purity copper-zinc formulations that are used in shower filter applications to reduce hydrogen sulfide, microorganisms, and scale. Shower water filtered through redox media controls microorganism growth and reduces bacteria and other microorganisms by electron transport, causing cellular damage. Inside the Berkey filter the Proprietary filter media also kills bacteria by direct electrochemical contact and by the flash formation of hydroxyl radicals and hydrogen peroxide, both of which interfere with a microorganism’s ability to function. High-purity copper-zinc redox media consistently remove 99% of free chlorine by electrochemically reducing dissolved chlorine gas to water-soluble chloride ions.

When pressurized shower water is filtered through the Berkey proprietary filter media, soluble lead cations are reduced to insoluble lead atoms, which are electroplated onto the surface of the filter.

Filter replacement:

All Berkey shower filters purchased typically last 20,000 gallons before needing replacement or one year whichever comes first, in which case you would need to shop for and buy another one online.
